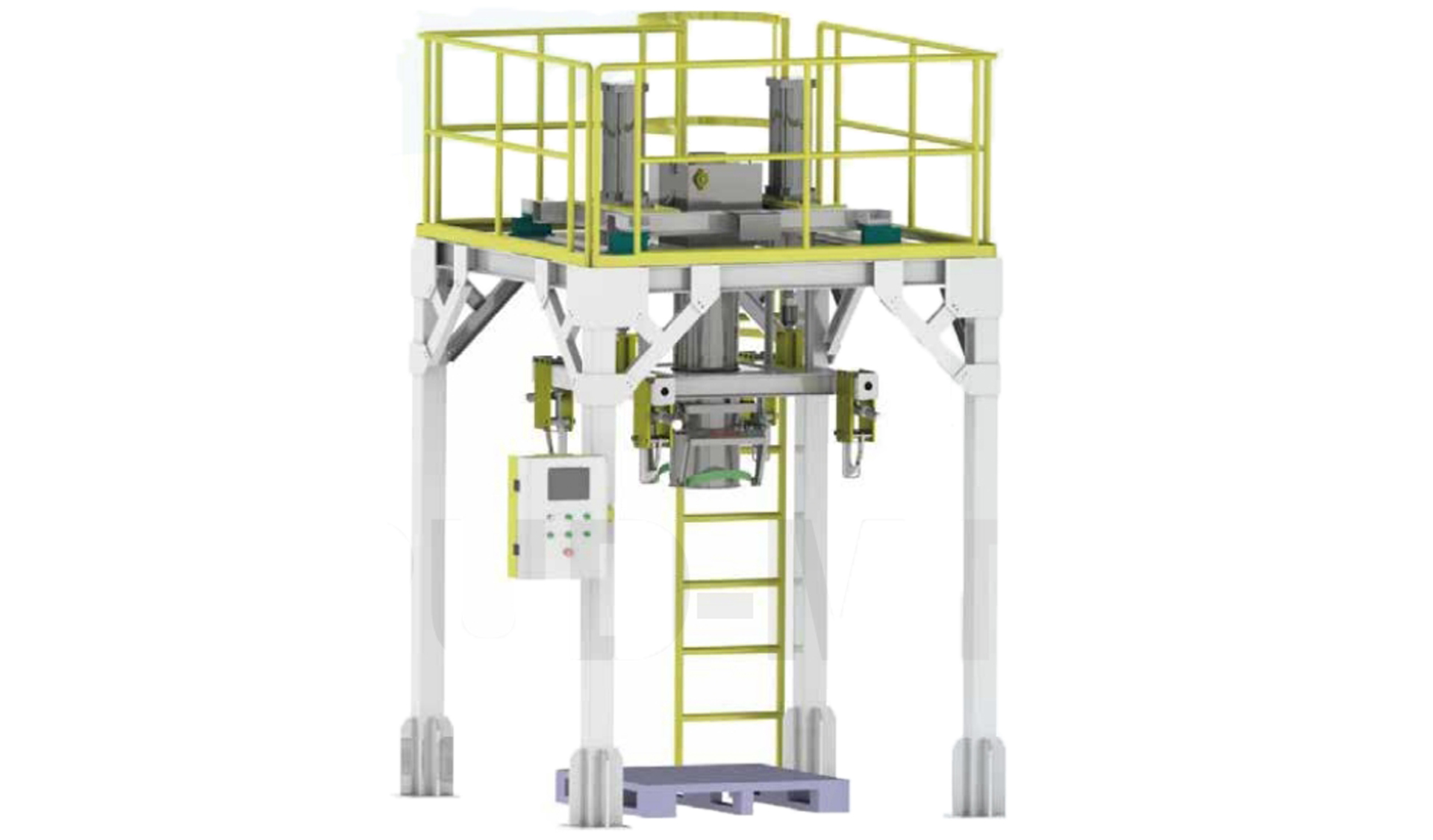

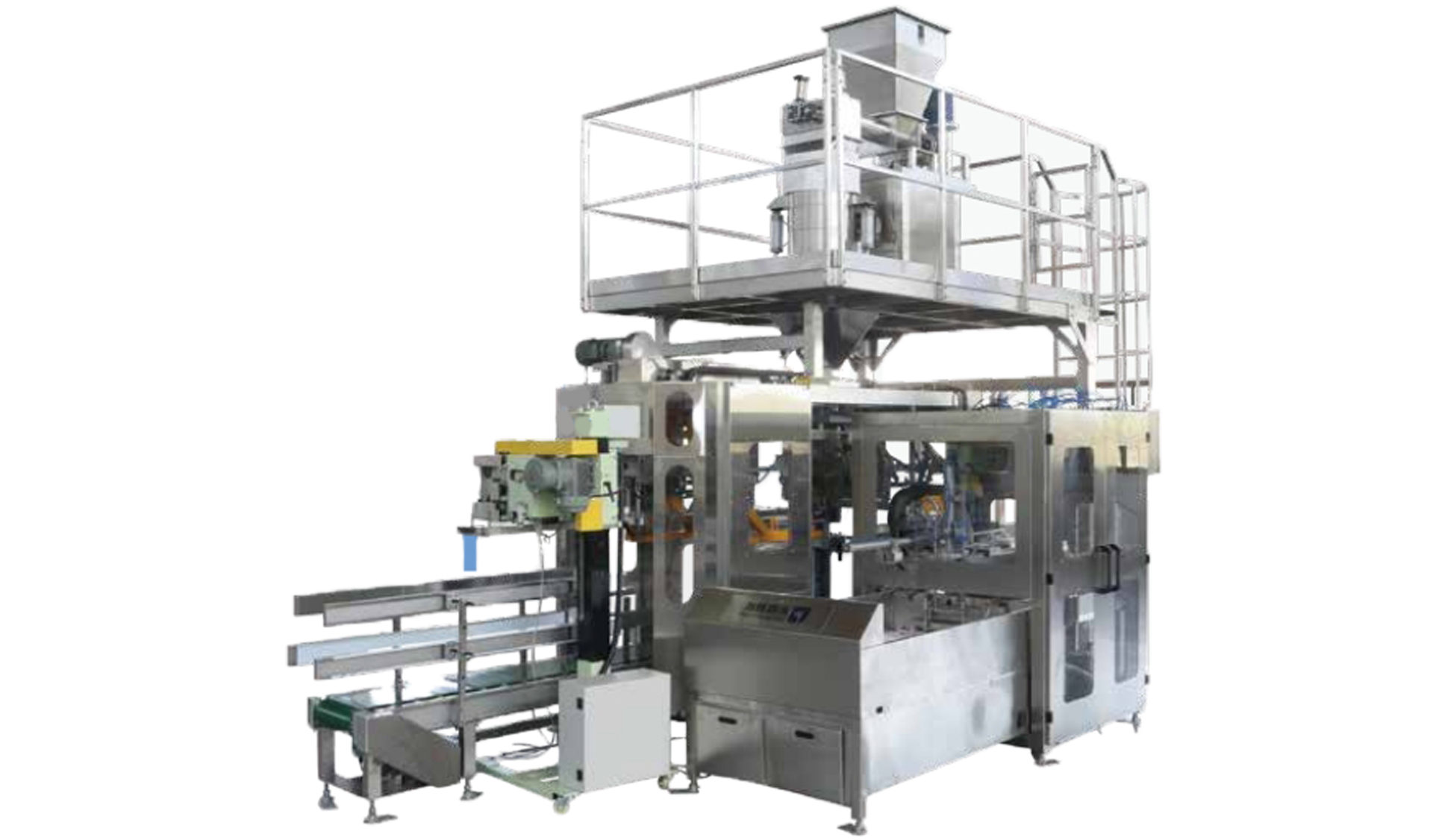

重袋吨袋包装机组

产品详情

适用范围Scope of application

针对于化工行业的颗粒吨袋定量包装。

For the chemical industry particle ton bag quantitative packaging.

功能特点Funcational characteristics

1、称重部分：称量采用四传感器模块并联方式，机械稳定性增强,提高称量精度和抗干扰能力;采用梅特勒·托利多传感器模块，确保称重四角平衡，模块式方便安装拆卸更换等；大大优化称重及维护的可靠性和方便性。

Weighing part:The weighing adopts the parallel mode of four sensor modules,which enhances the mechanical stability,improves the weighing precision and anti-interference ability;Mettler Toli multi-sensor module is used to ensure the balance of the weighing four comers,and the modular type is easy to install,disassemble and replace, Greatly optimize the reliability and convenience ofweighing and maintenance.

2、自动脱钩及自动夹袋松袋口机构：人工将吨袋四角挂在自动脱钩机构上，再将袋口套入中间夹袋机构，人工拨动开关,夹袋机构自动夹住袋口。当称重卸料完成,颠实动作完成(颠实动作可设置次数)，气动升降机构将满袋下降至托盘上，气缸驱动挂钩以及自动松袋口，气动升降机构上升脱离吨袋，此时设备绿灯报警提醒叉车人员过来叉取。

Automatic decoupling and automatic bag opening mechanism:Manually hang the four comers of the ton bag on the automatic decoupling mechanism, and then put the bag mouth into the middle bag clamping mechanism, manually flip the switch, and the bag clamping mechanism automatically clips the bag mouth.When the weighing and unloading is completed and the toppling action is completed (the number of toppling action can be set), the pneumatic lifting mechanism will lower the full bag to the tray, the cylinder will drive the hook and automatically loosen the bag mouth, the pneumatic lifting mechanism will rise out of the ton bag,and the equipment green light alarm will remind the forklift personnel to come and pick up.

3、气动升降吨袋颠实机构:吨袋灌装过程中采用气动升降方式颠实。

Pneumatic lifting ton bag toppling mechanism:The pneumatic lifting method is adopted in the filling process.

4、友好的人机界面:采用最先进的称重模块配合触摸屏式界面，人员操作更直观更简单。

Friendly man-machine interface:With the most advanced weighing module and touch screen interface, personnel operation is more intuitive and simple.

5、预供料式供料机构:采用供料器预供料方式，使设备确保精度的前提下,最大限度的提高粗供料的速度，大大提高设备称重效率。组合气缸设计，采用组合气缸驱动喂料,解决喂料机构故障多、性能不稳定等诸多难题。

Pre-feed feeding mechanism:The pre-feeding mode of the feeder is adopted to maximize the coarse feeding speed and greatly improve the weighing efficiency of the equipment under the premise of ensuring the accuracy of the equipment.Combined cylinder design,the use of combined cylinders to drive the feed, to solve the feeding mechanism failures, unstable performance and many other problems.

6、整机实现自动夹袋,灌装完成自动松袋、自动脱钩。

Dynamic automatic recheck correction function, the weight is not allowed to exceed the alarm.

7、动态自动复检修正功能,重量不准超差报警。

The whole machine realizes automatic bag clamping,automatic bag loosening and automatic decoupling after filling..

技术参数Technical parameters

1、型号：PUD-MTO1

Model：PUD-MTO1

2、称量范围(kg)：500-1000

Weighing range (kg)：500-1000

3、显示分度值(kg)：0.1

Display index value (kg)：0.1

3、称量误差：±500g
